Description

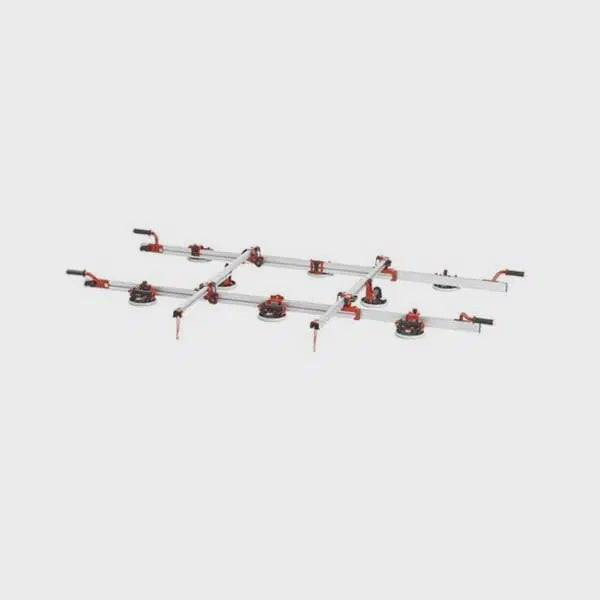

EASY-MOVE MkIV WITH RV175 SUCTION CUPS (VACUUM WITH GAUGE): ADJUSTABLE EXTENSION DEVICE FOR HANDLING LARGE FORMAT TILES UP TO 320 cm (10.5’) LENGTH with Crossbars

Completely redesigned this 4th generation of Easy-Move frame for handling large format tiles offers functionality and performance never achieved before
Weight reduced by over 25% compared to the previous version
Equipped with the innovative RV175 vacuum suction cups (perfect for textured tiles) featuring vacuum gauge and stain-free rubber, both very easy to replace in case of need, and die-cast aluminum body
Maximum safety thanks to the vacuum gauges (placed in protected position) which constantly indicates the degree of vacuum inside the cup. The pump system allows to restore/increase the vacuum at any time with the suction cup still in place/working
The sliding between the main aluminum profiles is extremely fluid thanks to the anti-friction pads
All suction cups (including the central ones) can be easily slid into any position along the profiles
Available version with two variable-length telescopic crossbars (mini 90 cm / 35 ½”; max 160 cm/ 63”) to allow easy entry into the case/skid and adapt to slabs of any width
Crossbars can be easily tilted at an angle (compared to the main profiles) so to adapt to even the most complicated slab layouts
Each crossbar is equipped with a RV175 suction cup that can be moved along its entire length. The suction cup can be positioned both inside and outside the main profiles quickly and easily
All sliding and movements are extremely fluid to quickly and easily adapt the frame configuration to the slab layout. Even the most complicated
Tilting suction cups (+/- 5 °) to adapt to the inevitable bending of the slabs and guarantee the perfect grip in every situation. The system is particularly useful for textured slabs
Suction cups are all positioned in line so to allow using EASY-MOVE MkIV also on reduced width slabs (minimum width 19 cm / 7 ½”)
The 4 sliding handles provided with non-slip and stain-proof grommet result in best ergonomics and handling even for wall installation. Each handle equipped with soft rubber grip
Maximum slab length 320 cm (10.5 feet); minimum 100 cm (3.3 feet)
